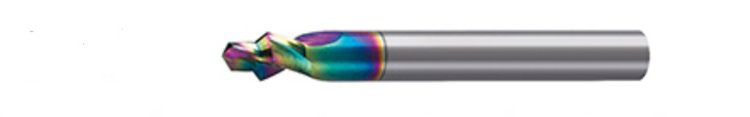

2 Flutes DLC Milling Drills

In the field of modern metal processing, this 2 Flutes DLC Milling Drills has outstanding performance in metal processing applications with its unique design, various coating options and excellent characteristics. It is a high-performance tool specially designed for metal processing. Its double groove design and various coating choices make it an ideal choice for removing materials, burrs and keeping a smooth surface. After machining, the milling cutter can provide mirror finish for aluminum and similar materials, and is also suitable for machining brass, copper, gold, magnesium, alloys, plastics, acrylic acid, PVC and other non-ferrous metals, making it a popular cutting tool.



1. Metal processing application: 2 Flutes DLC Milling Drills is made of high-quality carbon alloy material, which has the characteristics of hardness, compact structure and so on. It has a fast cutting speed and is mainly used for metal processing applications. It can efficiently remove materials from the workpiece, while leaving a smooth surface and maintaining the smoothness of the workpiece.



2. Various coating options: The milling cutter provides various coating options, including titanium nitride (TiN), titanium carbonitride (TiCN), titanium aluminum nitride (TiAlN or AlTiN) and diamond veneer. These coatings can provide additional wear resistance, lubricity and thermal stability, making tools perform well under different materials and processing conditions.



3. Selection of various specifications: It provides the choice of standard and metric shank and cutting diameter, which is suitable for different processing requirements, especially for high-yield light processing applications.



4. Efficient metal removal: Its double-groove design enables the milling drill to efficiently remove materials from the workpiece and improve the machining efficiency. At the same time, it can speed up the ability of chip removal and avoid downtime caused by chip blockage.















	d1	L1	D	L
D4*5*D8*70L	4mm	5mm	8mm	70mm
D4.2*5*D8*70L	4.2mm	5mm	8mm	70mm
D4.5*5*D8*70L	4.5mm	5mm	8mm	70mm
D4*6*D8*80L	4mm	6mm	8mm	80mm
D4.1*6*D8*80L	4.1mm	6mm	8mm	80mm
D4.2*8*D8*80L	4.2mm	8mm	8mm	80mm
D4.5*8*D8*80L	4.5mm	8mm	8mm	80mm
D4.5*8*D10*100L	4.5mm	8mm	8mm	100mm
D4.8*8*D10*100L	4.8mm	8mm	8mm	100mm



Φ1.0-Φ2.9	0--0.02	H6
Φ3-Φ6	-0.01--0.03
Φ6-Φ10	-0.01--0.035
Φ10.0-Φ18.0	-0.01--0.04
Φ18.0-Φ20.0	-0.015--0.045



	Pre-harden steel	High-hardened
	45HRC	50HRC	55HRC	60HRC	65HRC
								○





	Carbon Steel, Alloy Steel, S45C, FC, FCD, SCM, S50C, SKS...		Alloy Steel, Tool Steel SCR, SNCM, SKD11, SKD61.NAK80		Hard Steel, SKD11
	HRC30		HRC50		HRC60
	Cutting speed(VC) (mm-1)	Feed(F) (mm-min)	Cutting speed(VC) (mm-1)	Feed(F) (mm-min)	Cutting speed(VC) (mm-1)	Feed(F) (mm-min)
1mm	22000	400	18000	200	9000	140
1.5mm	12000	500	11000	280	5200	150
2mm	10000	550	10000	280	4600	170
3mm	9000	600	5500	310	3500	220
4mm	6000	750	5000	400	2200	220
5mm	4800	800	4000	400	1700	240
6mm	4500	820	3800	420	1600	300
8mm	3500	820	2800	420	1000	300
10mm	3000	820	1800	420	900	300
12mm	2000	820	1600	350	800	300
16mm	1500	650	1000	300	500	150
20mm	1200	650	900	300	400	150







					Density(g/cm3)		T.R.S(N/mm2)
YG10X(50HRC)	K30-K40	89	10	0.8	14.43	91.5	2500
UF12U(55HRC)	K40	87	12	0.6	14.15	92.3	3900
AF501(60HRC)	K05-K10	89	10	0.4	14.1	92.8	3600
AF308(65HRC)	K05-K10	91	8	0.3	14	93.8	3800

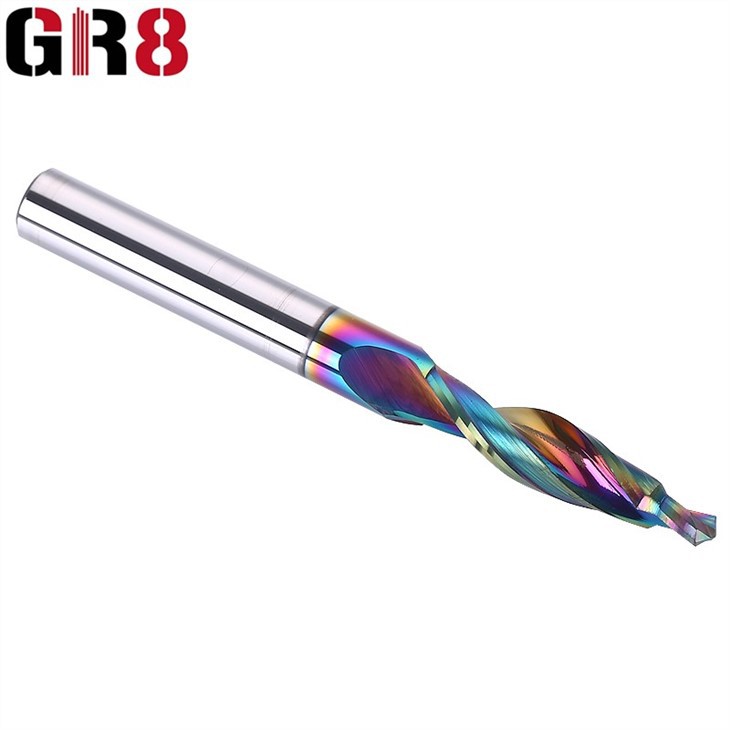

2 Flutes DLC milling drills	2 Flutes DLC Cemented Carbide drills	2 Flutes DLC Solid Carbide drills

















1.Are you manufacturer or trading company ?

We are Professional manufacturer with own export&import license. More than 10 year exporting experience.



2.What cnc machines do you use?

More than 10 pcs ANCA ,Walter CNC grind machines ,and professional staff to make sure the good quality , with short delivery time.



3.Can you send products to our Forwarder in China?
